Roof Glazing Replacement at Heritage and Arts Centre, Oldham
Rejuvenating History for Art and Heritage
The transformation of the former library into a new Heritage and Arts Centre in Oldham marked an ambitious project, breathing life into a cherished Victorian landmark. The building was set to become the heart of the community, linked with Gallery Oldham, the Library, and the Lifelong Learning Centre. This endeavour, driven by Oldham Council’s heritage service, aimed to consolidate local studies, archives, museum collections, and arts and heritage learning under one roof. This was a visionary step to unite services scattered across six different buildings throughout the town.
Recognising Excellence
In recognition of our commitment to excellence, we proudly received the award for the highest quality standards on this project. This accolade came from none other than the Principal Contractor, Tilbury Douglas, validating our dedication to delivering exceptional results.
Innovative Roof Glazing Systems

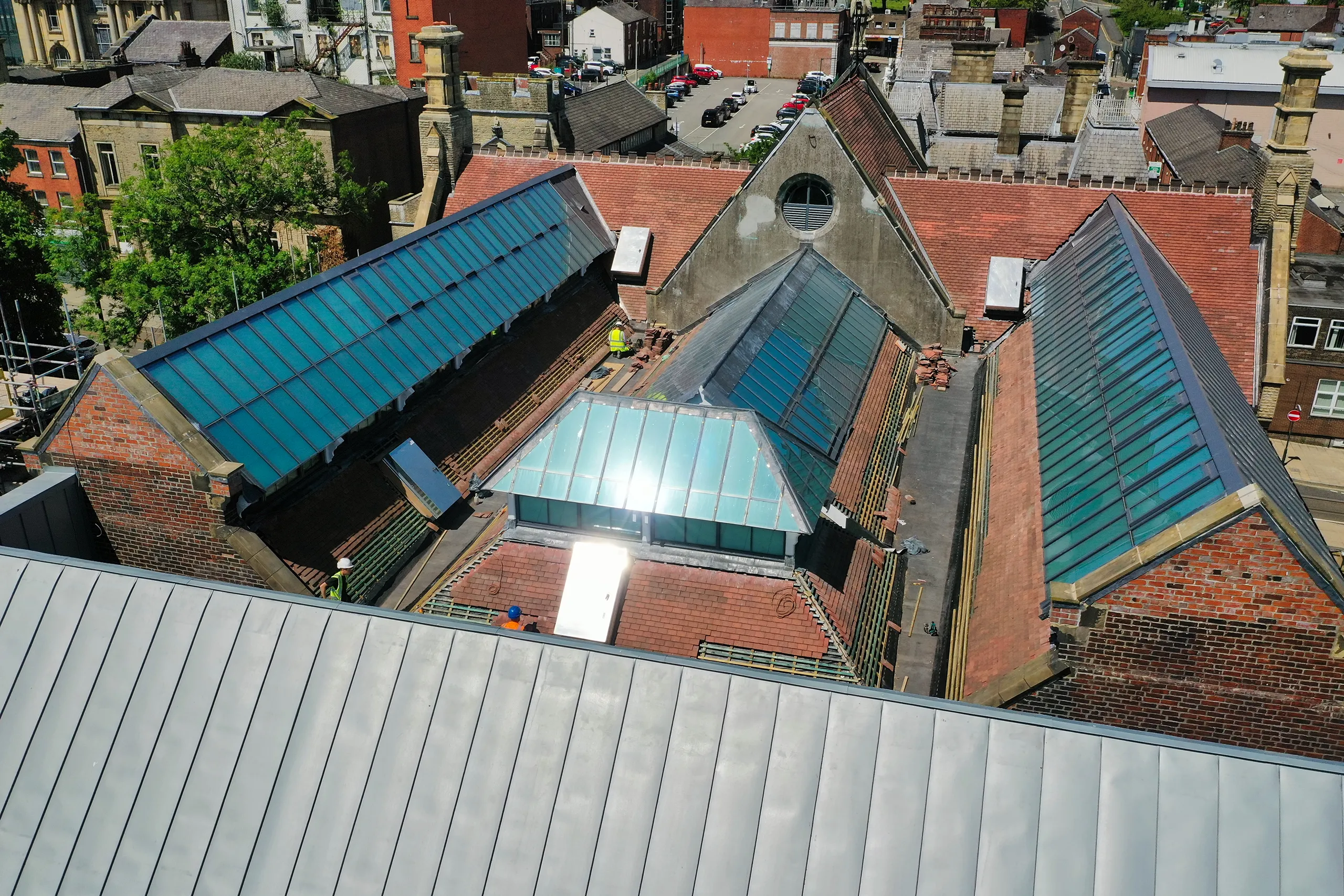

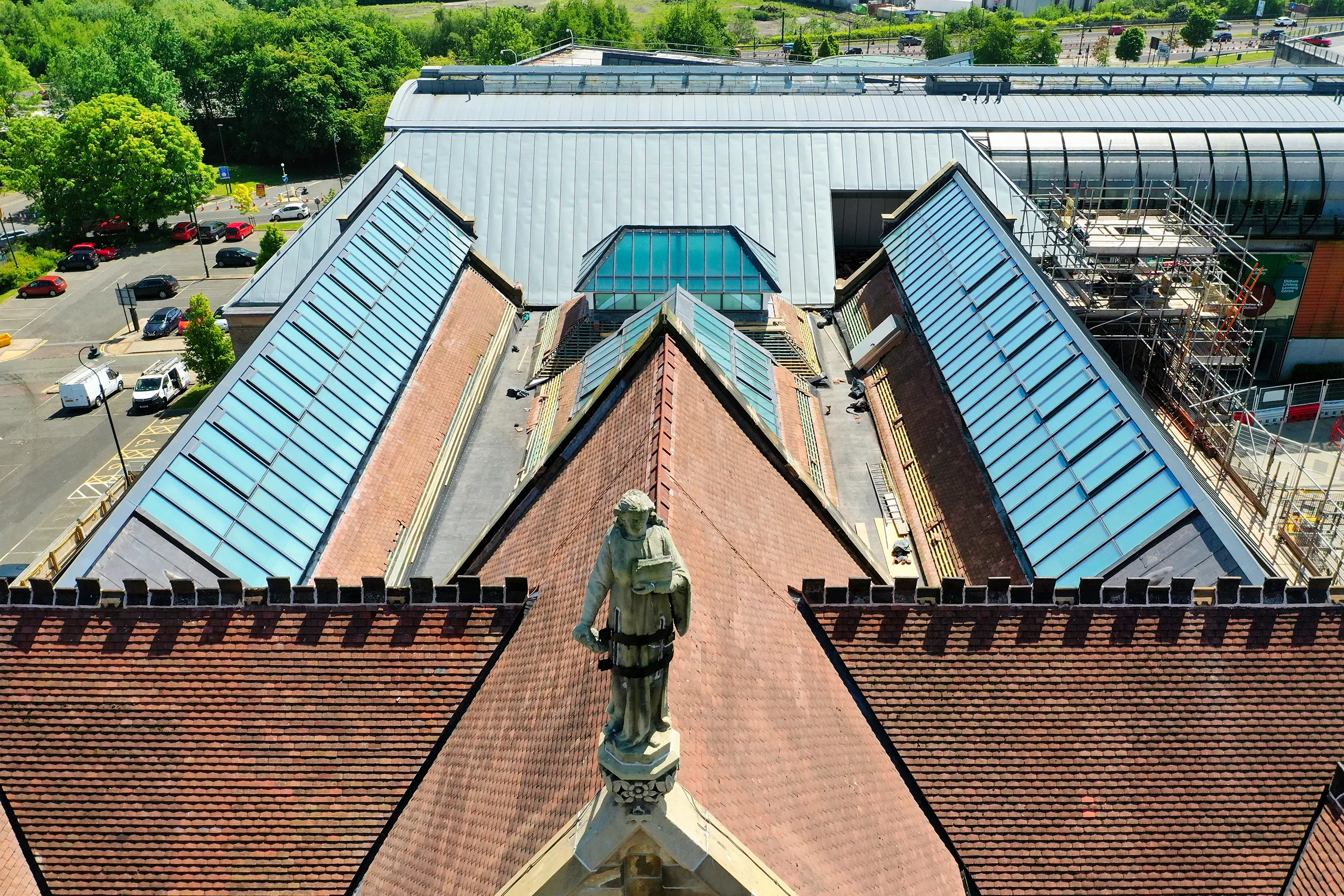

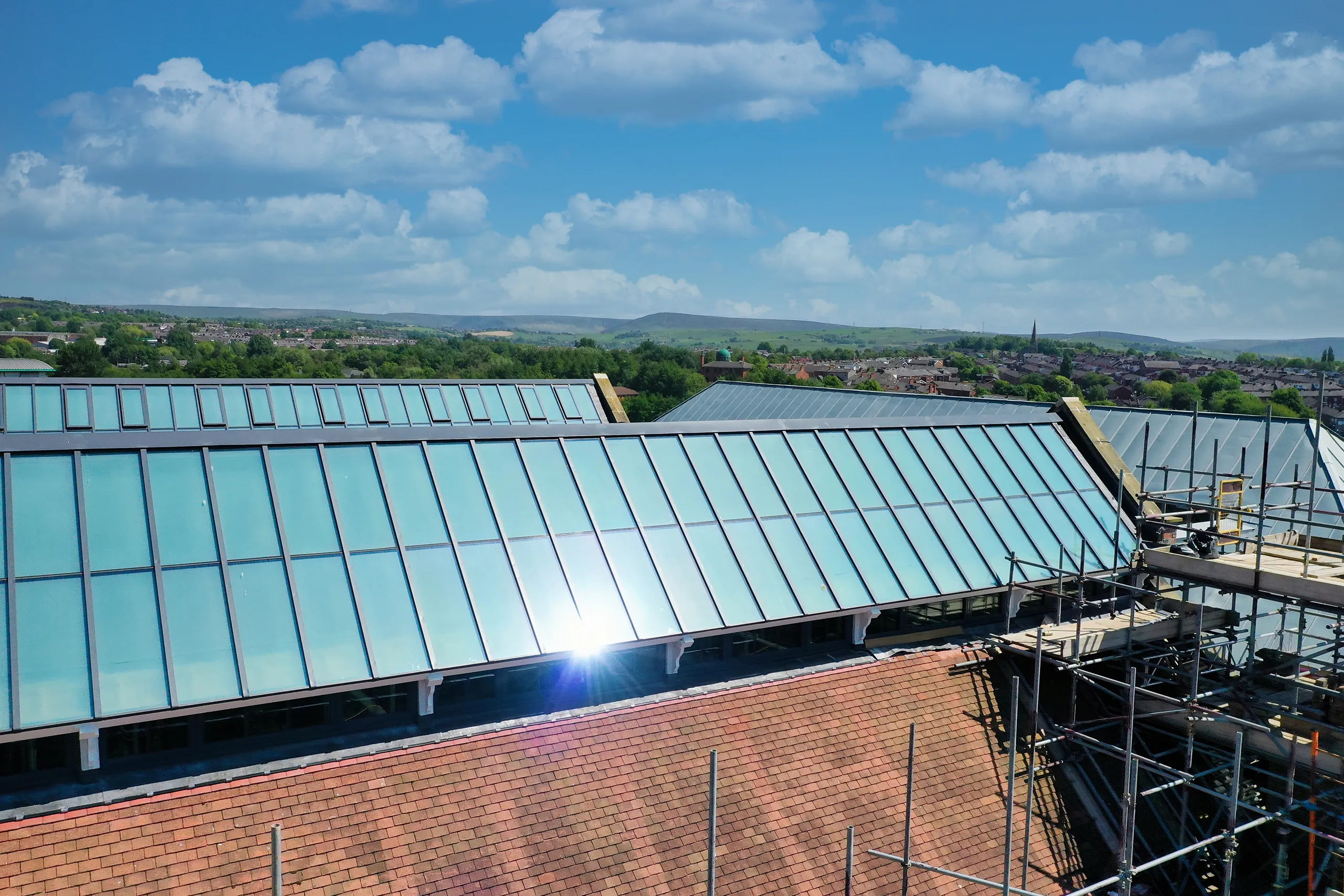

Our contribution to this project was substantial, installing a total of 360m² of roof patent glazing. We installed the Skyline box glazing system which incorporated high-performance double-glazed units designed for solar control and heat strengthening. The inner panes featured laminated safety glass, all coming together to achieve a class 2 non-fragile assembly. This approach aligned perfectly with the guidelines set forth in CWCT TN66 and TN67.
The East and West wings received automatic opening ventilators to promote natural ventilation, enhancing the comfort and efficiency of the building. These ventilators are seamlessly controlled by the Building Management System.
Additionally, our Heritage patent glazing system was implemented for the central roofs, once again utilizing high-performance double-glazed units with solar control and heat strengthening features. The inner panes were laminated safety glass, ensuring that this portion of the project also achieved a class 2 non-fragile assembly, in strict accordance with CWCT TN66 and TN67 guidelines.
A Unique Blend of Tradition and Modernity
We take pride in being the only company in the daylighting industry that seamlessly combines the delivery of a modern glazing system, such as the Skyline box glazing system, with the preservation of Victorian originals, like our unique Heritage system. This distinctive capability underscores our dedication to preserving historical heritage while embracing modern solutions.
Result: A Heritage and Arts Hub
The completion of the Heritage and Arts Centre in Oldham signifies a triumph in heritage restoration and modern functionality. This transformation brought together dispersed services, fostering community cohesion and accessibility to Oldham’s rich history and culture. The recognition for the highest quality standards underscores our commitment to delivering outstanding results.
This case study highlights our ability to combine modern glazing solutions with historic preservation, ensuring that cherished landmarks continue to inspire and serve the community. The Heritage and Arts Centre now stands as a symbol of both history and innovation, a testament to the power of revitalising architectural heritage for future generations.
Testimonial ~ Alex Moore, Senior Project Manager at Tilbury Douglas
‘‘I want to express my deep appreciation for the remarkable work undertaken by Standard Patent Glazing in the Roof Glazing Replacement project at the Heritage and Arts Centre in Oldham. Their contribution was pivotal to the success of this ambitious transformation, where a former library was rejuvenated into a Heritage and Arts Centre.
The completion of the Heritage and Arts Centre in Oldham signifies a triumph in heritage restoration and modern functionality. Standard Patent Glazing’s contributions played a significant role in bringing together dispersed services. Their recognition and award for the highest quality standards on this project is well-deserved, underscoring their dedication to delivering outstanding results.’’
