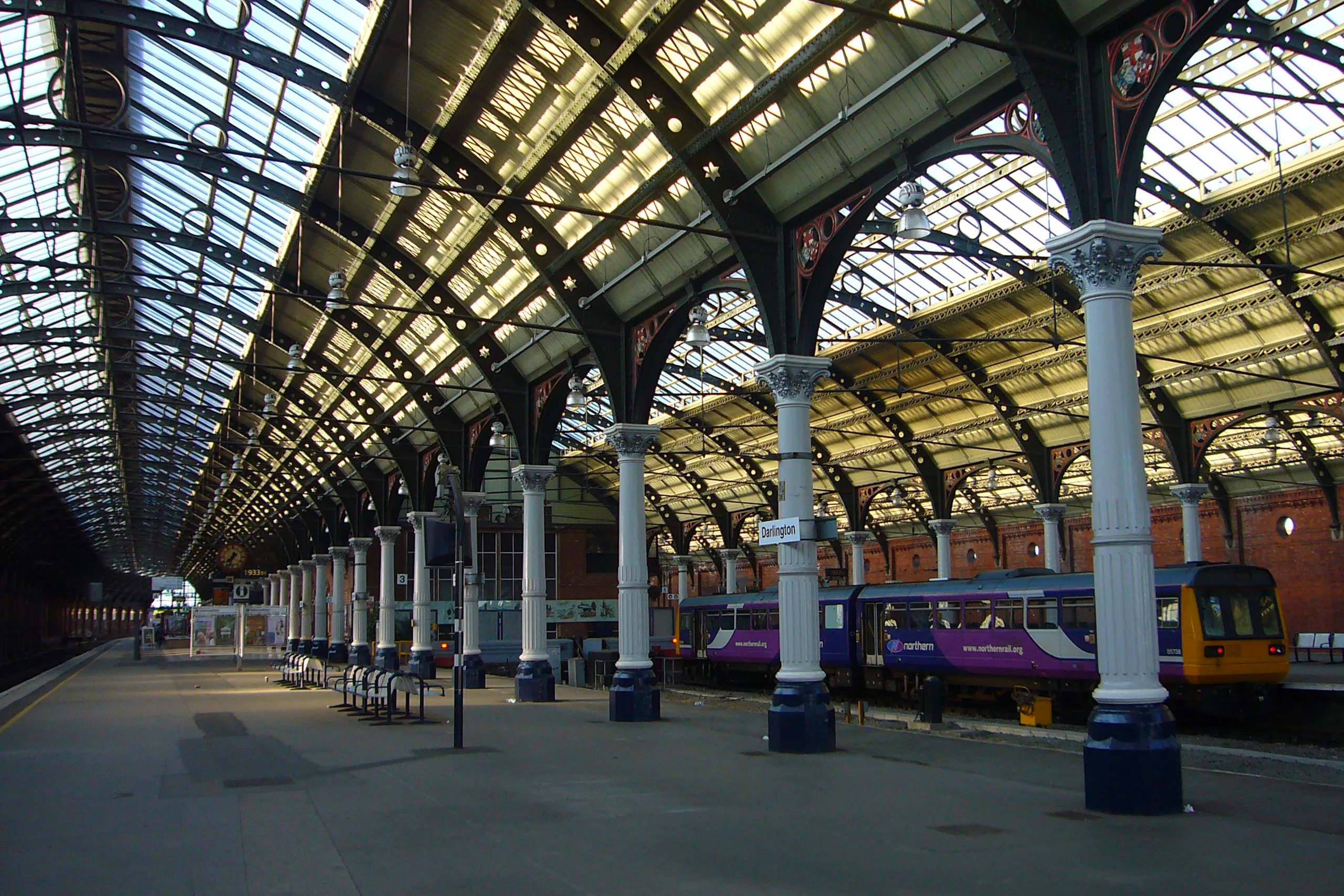

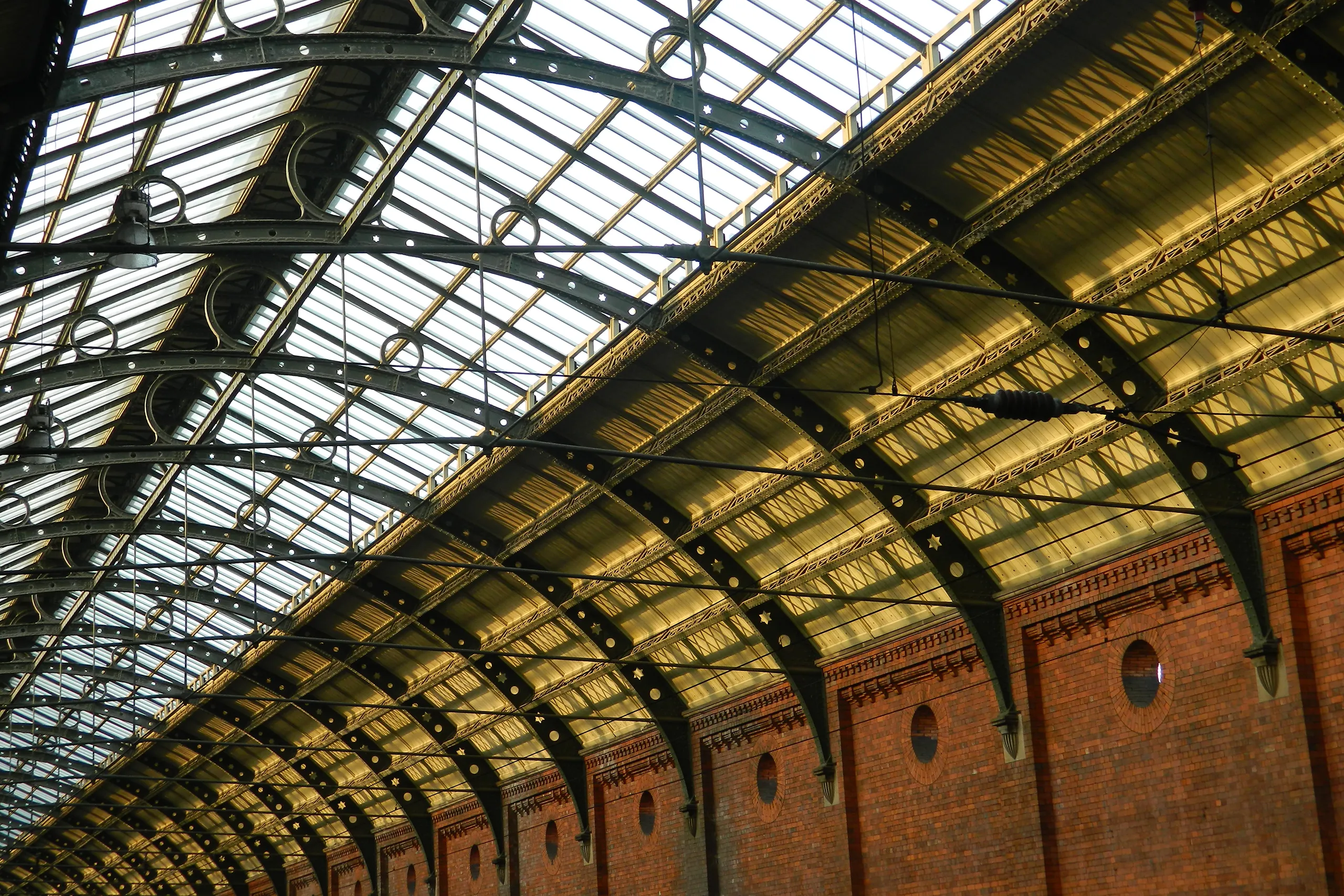

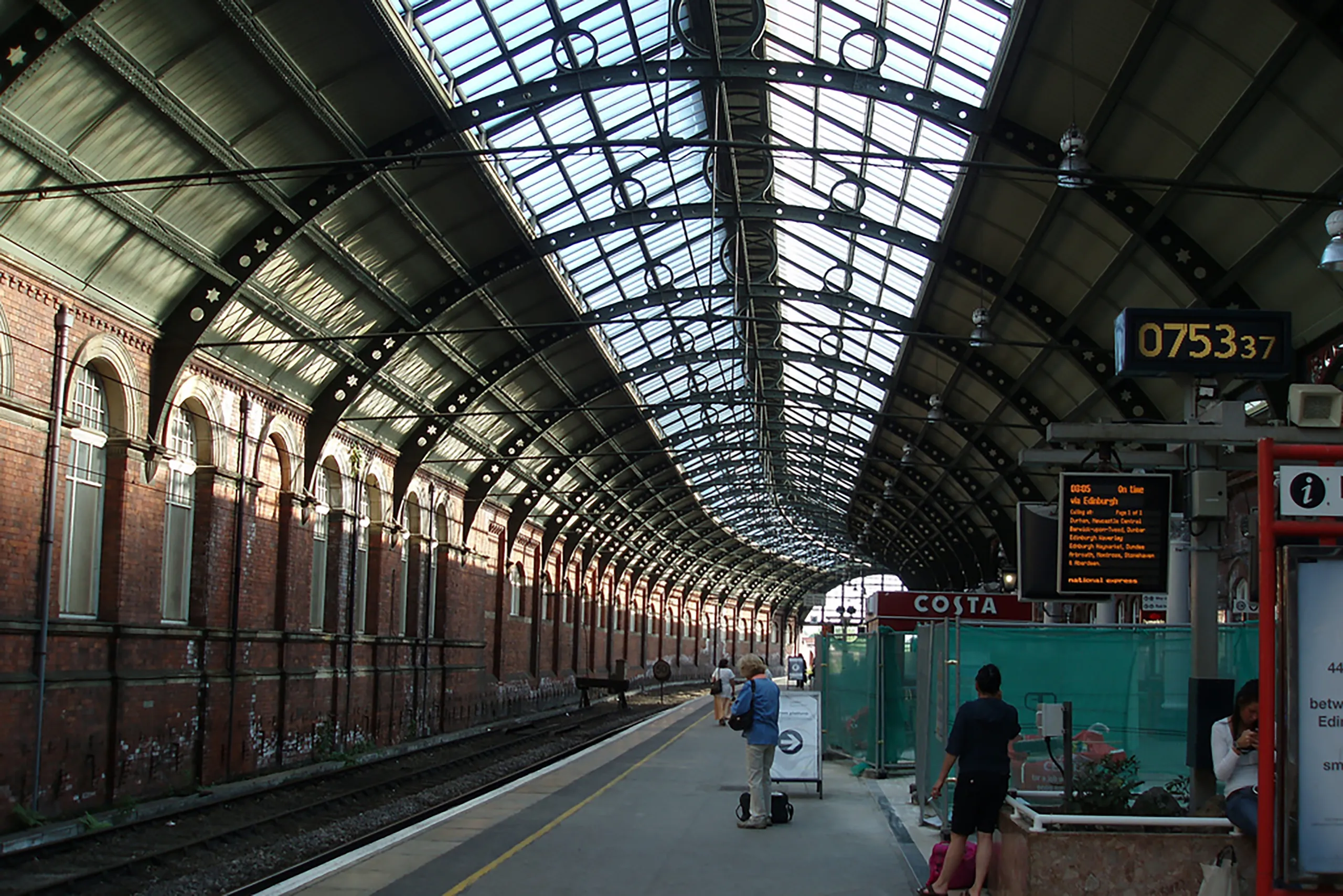

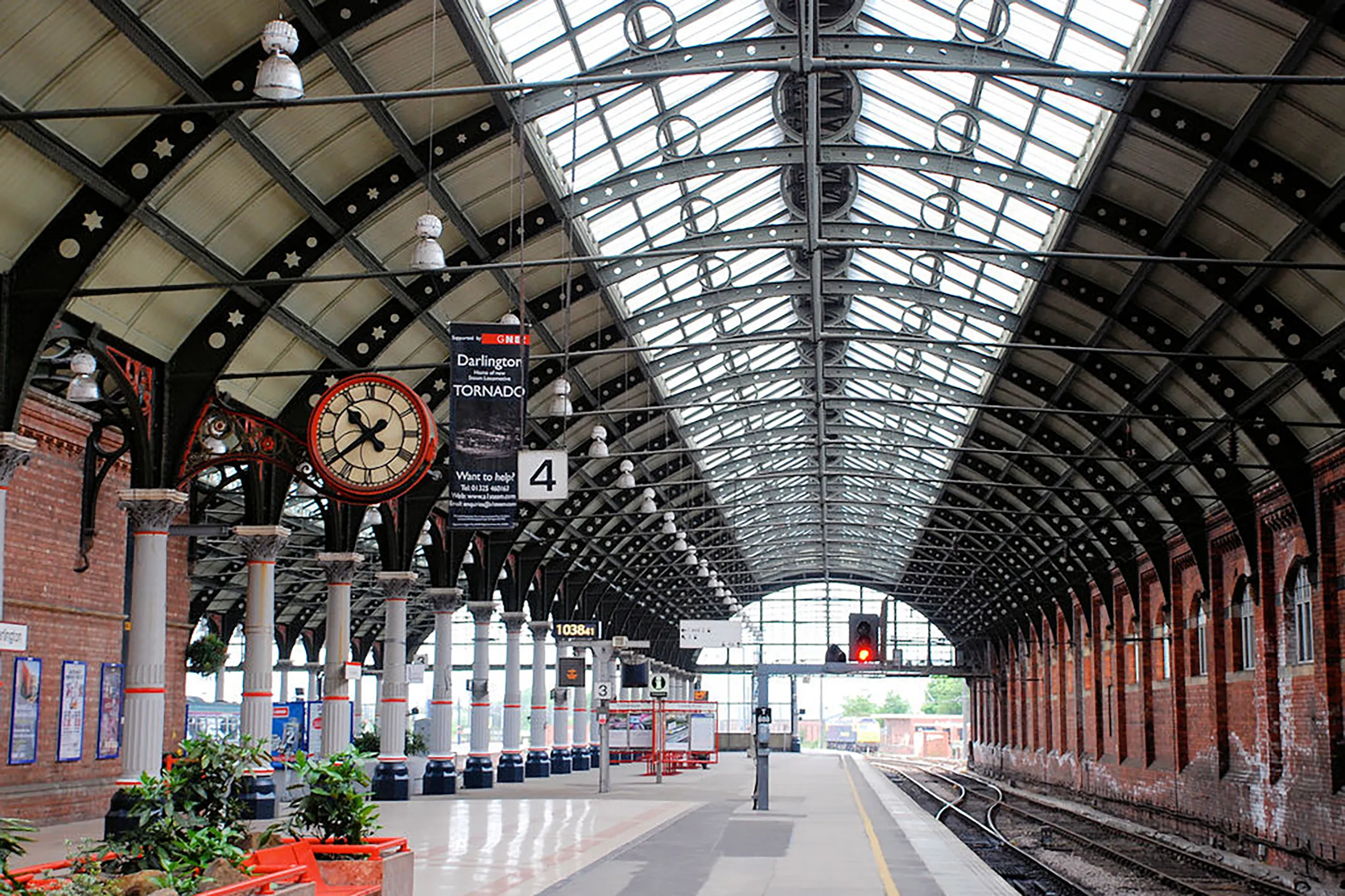

Roof Glazing Replacement at Darlington Railway Station
Project Overview
As part of a significant station upgrade, Darlington Railway Station undertook a roof glazing replacement project. This case study highlights the successful installation of patent glazing to enhance the station‘s high-level glazing, using traditional aluminium patent glazing bars with wings. The project encompassed the installation of single-glazed panels made of 6.4mm clear laminated Class B safety glass, focusing on maintaining operational continuity and safety.
Scope of Work
The primary objective of this project was to replace the existing high-level glazing within Darlington Railway Station, totalling 6,300m². Key aspects of the project included:
- High-Level Glazing within the Station: Traditional aluminium patent glazing bars with wings were chosen to support and secure the new patent glazing. Single-glazed panels composed of 6.4mm clear laminated Class B safety glass were installed to ensure safety compliance and functionality.
Challenges and Solutions
- Operational Continuity: Maintaining station operations during the installation was a paramount concern. To address this challenge, all works were carried out from bespoke staging boards equipped with safety netting. This approach not only ensured the safety of the workforce but also allowed the station to remain fully operational during the construction period.
- Minimised Scaffolding Requirement: To further reduce the project’s impact on the station’s daily operations, the existing gantry walkway was utilised for external work. This strategy significantly reduced the need for scaffolding and the loading imposed on the old train shed roof, minimising disruptions and additional structural demands.
Project Outcome
The roof glazing replacement project at Darlington Railway Station was executed successfully, enhancing the station’s appearance and operational functionality. The installation of 6,300m² of patent glazing, utilising traditional aluminium patent glazing bars with wings and 6.4mm clear laminated Class B safety glass, delivered a durable and safe glazing system.
The construction methodology, with the use of bespoke staging boards and safety netting, allowed the station to maintain full operational status throughout the installation. The clever use of the existing gantry walkway externally minimised the scaffolding requirements and reduced the loading on the historic train shed roof, showcasing an innovative and practical approach to roof glazing replacement.
This case study exemplifies the successful execution of a roof glazing replacement project that considered operational continuity, safety, and structural preservation, ultimately ensuring that Darlington Railway Station continues to be a prominent transportation facility for years to come.
Testimonial ~ Keith White, Project Manager at Spencer Group
“Standard Patent Glazing has consistently demonstrated their expertise in executing large-scale roof glazing projects with precision and innovation. The Darlington Railway Station roof glazing replacement project is a testament to their capabilities as our go-to roof glazing company. The project presented significant challenges, including the need to maintain operational continuity while ensuring safety and preserving the structural integrity of the station. Their construction methodology, which allowed work using safety netting as a collective solution, bespoke staging boards and utilised the existing gantry walkway for external work, minimised disruptions and the need for extensive scaffolding. This innovative and practical approach showcases their commitment to delivering projects that prioritise safety and operational efficiency. We trust Standard Patent Glazing to handle large-scale roof glazing projects with the expertise and professionalism that our projects demand.”
